Coffee With AI Aroma

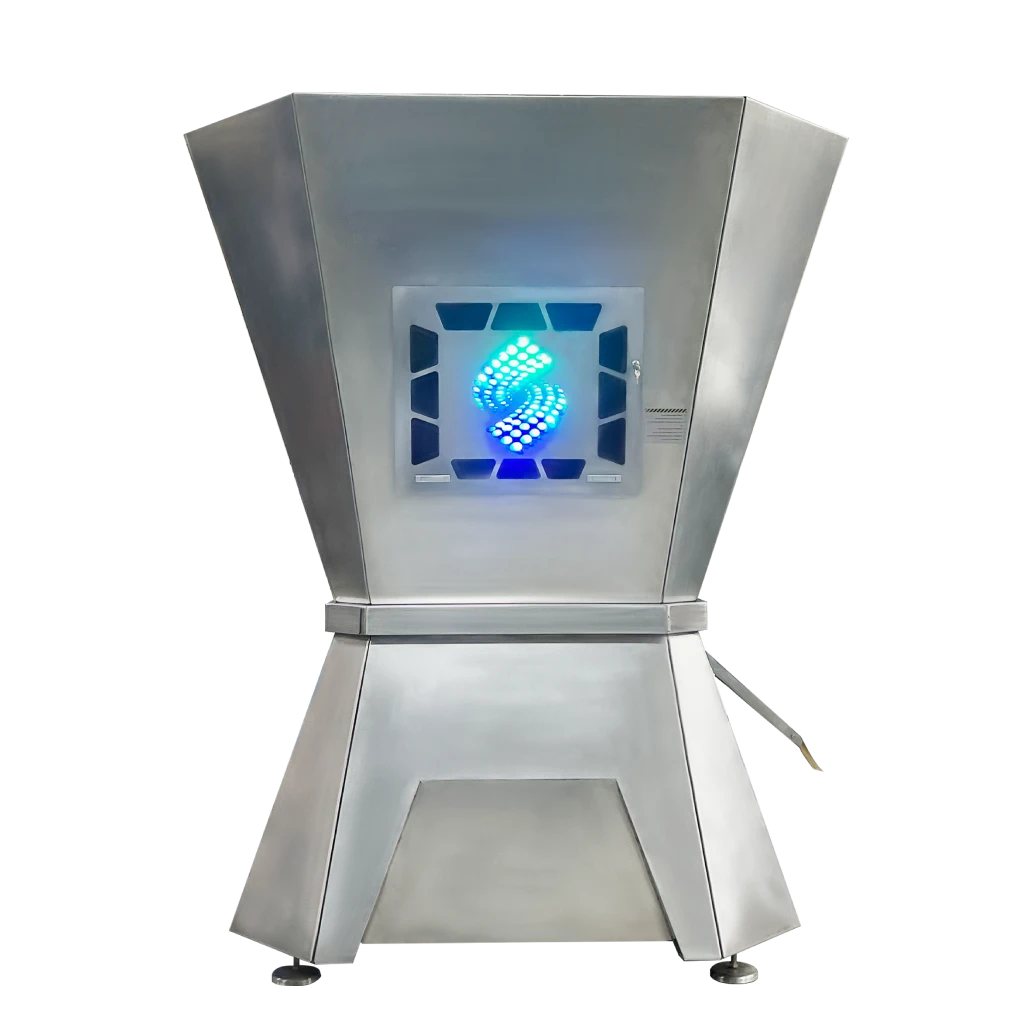

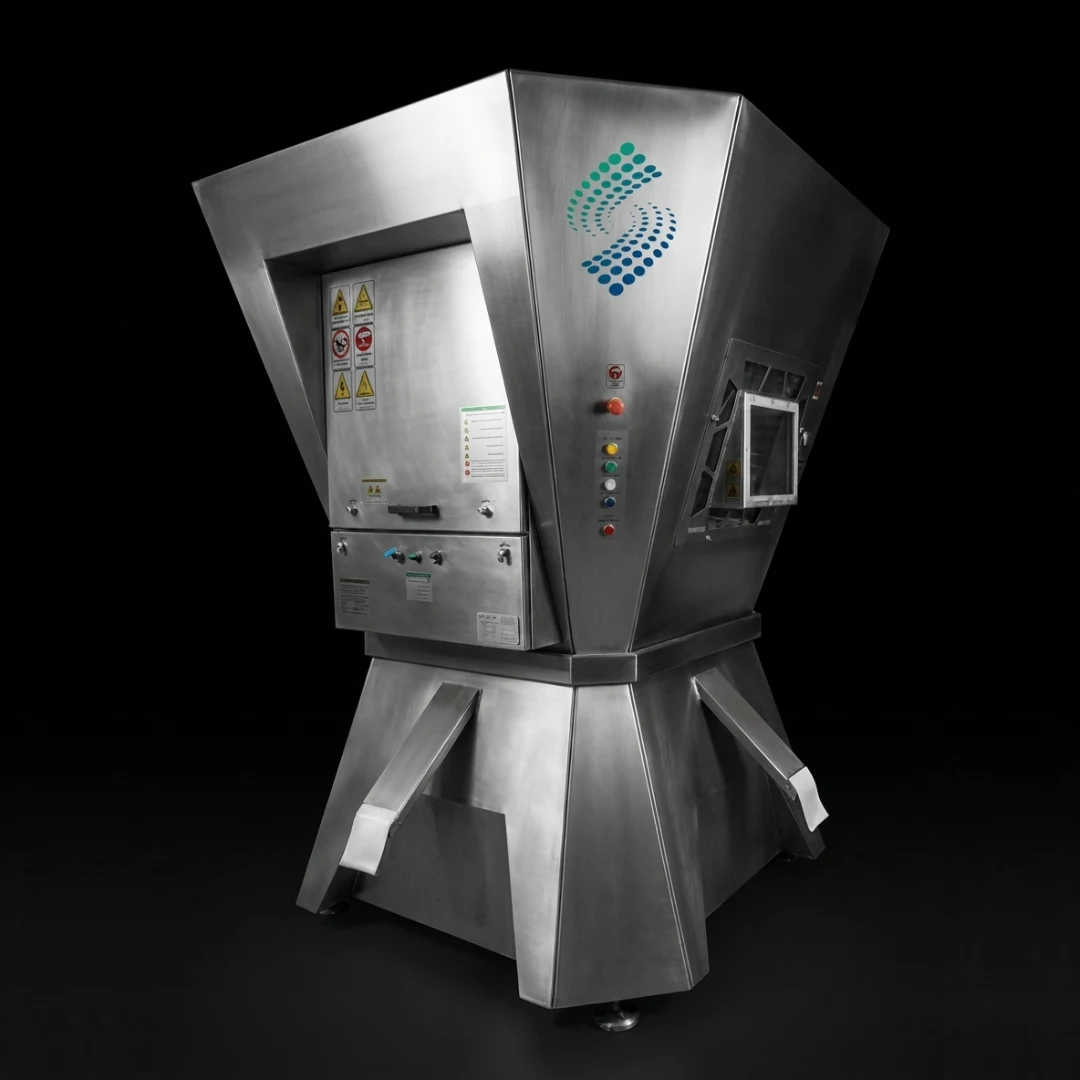

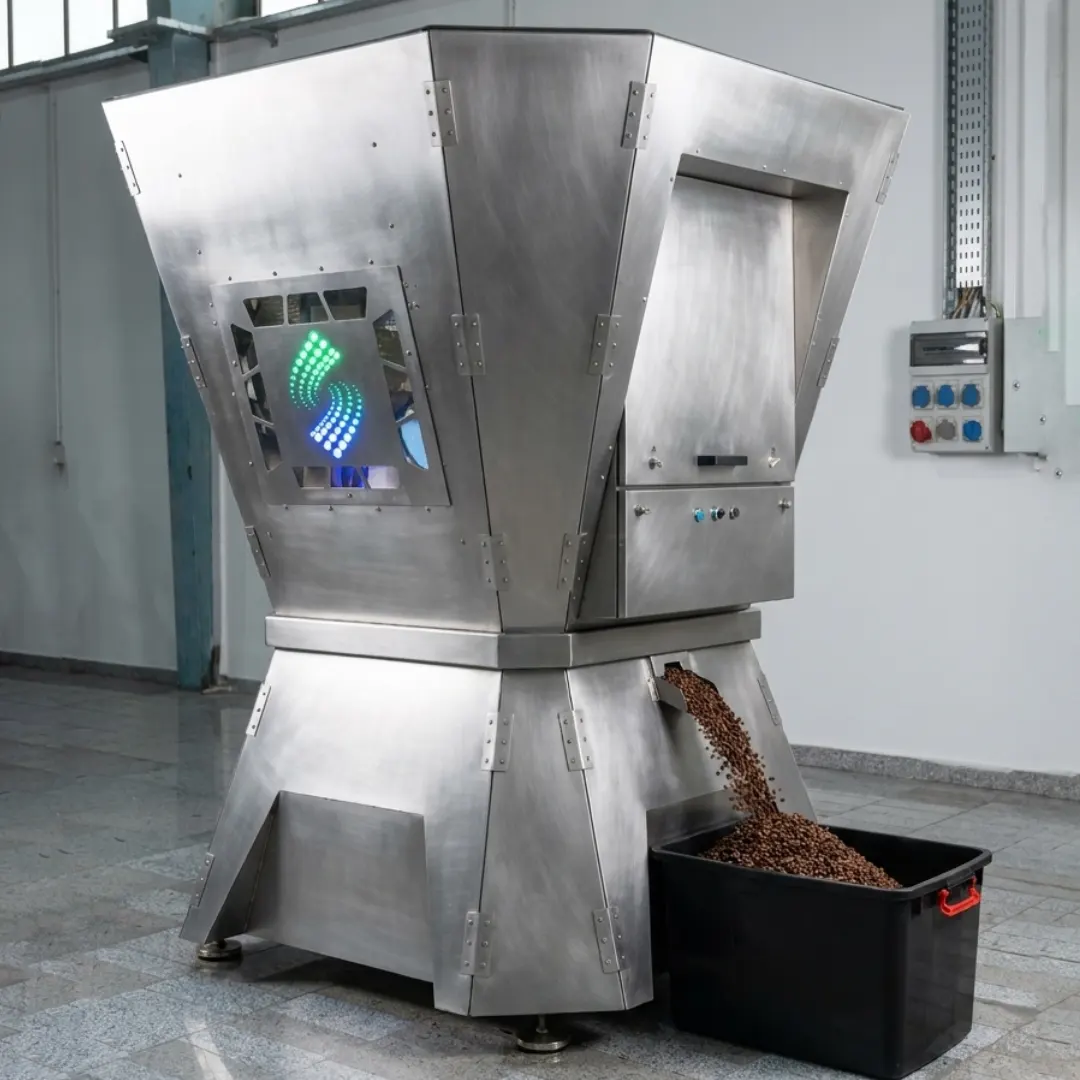

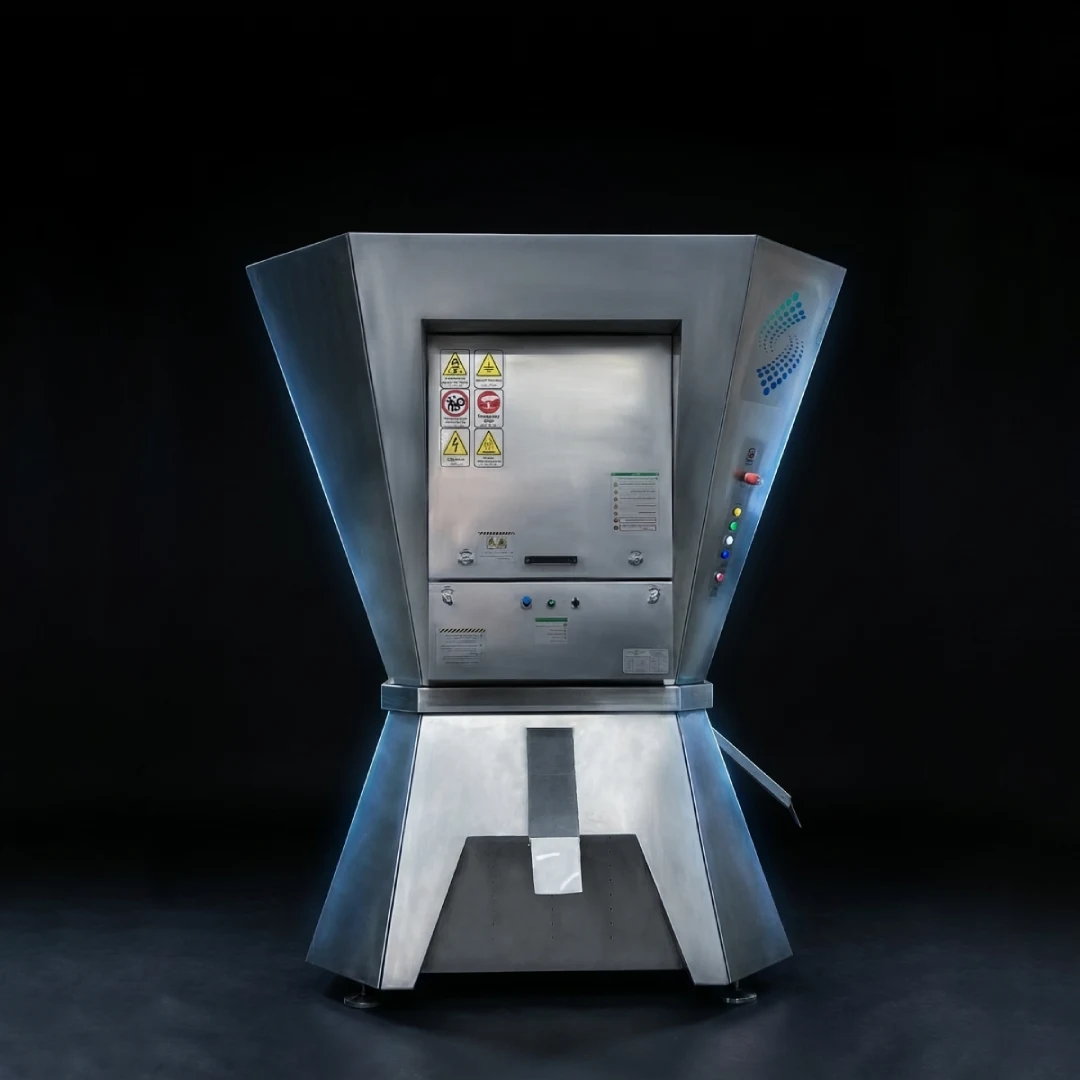

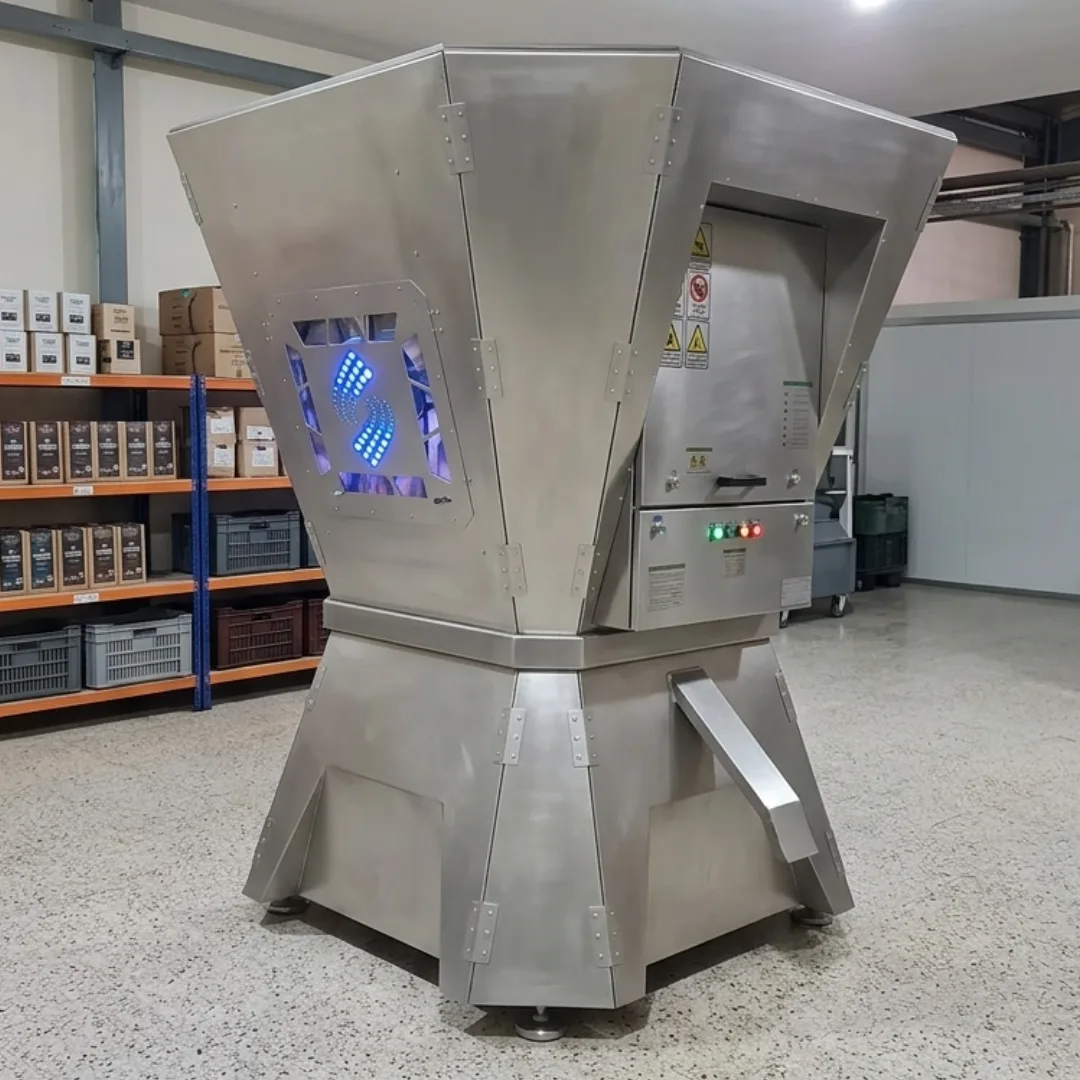

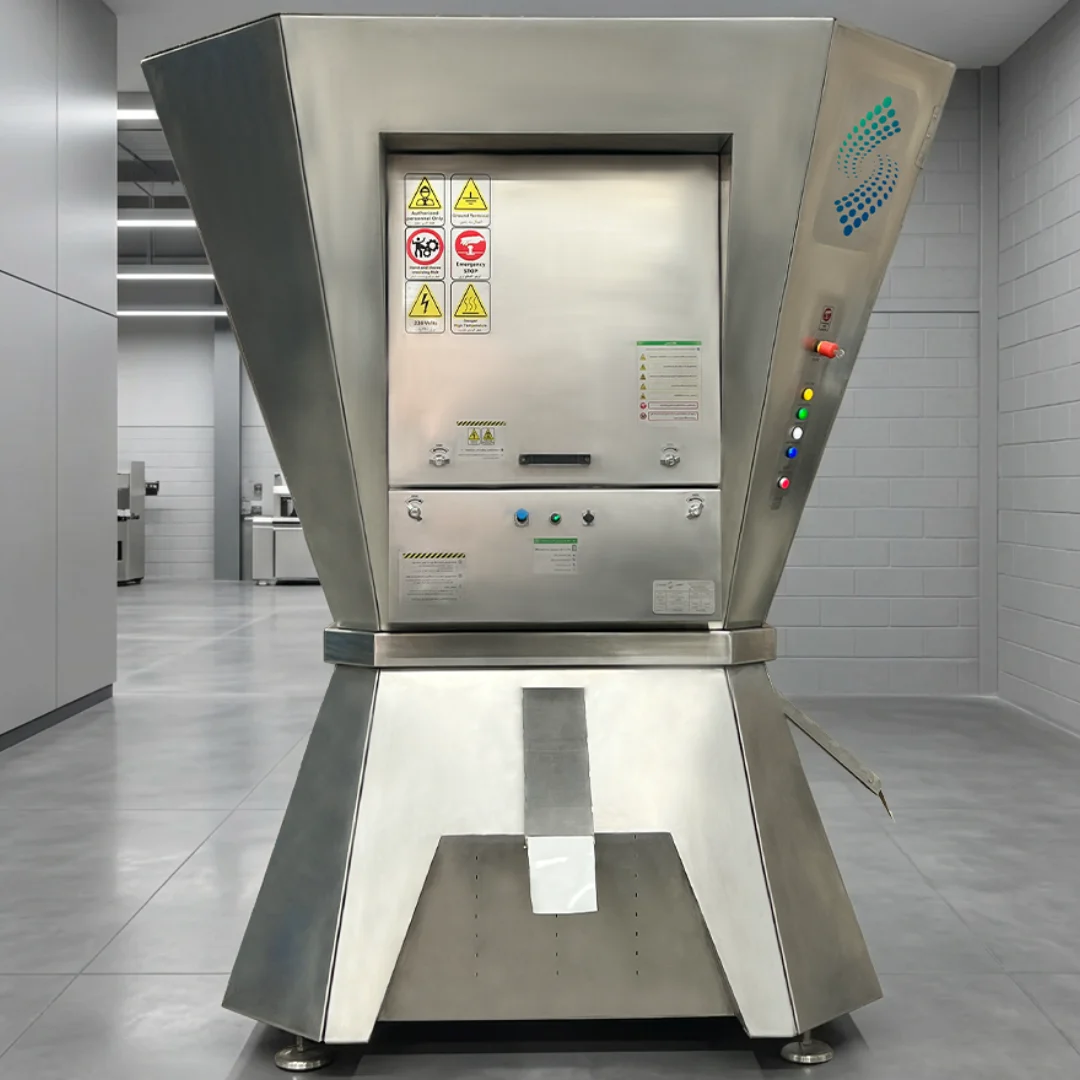

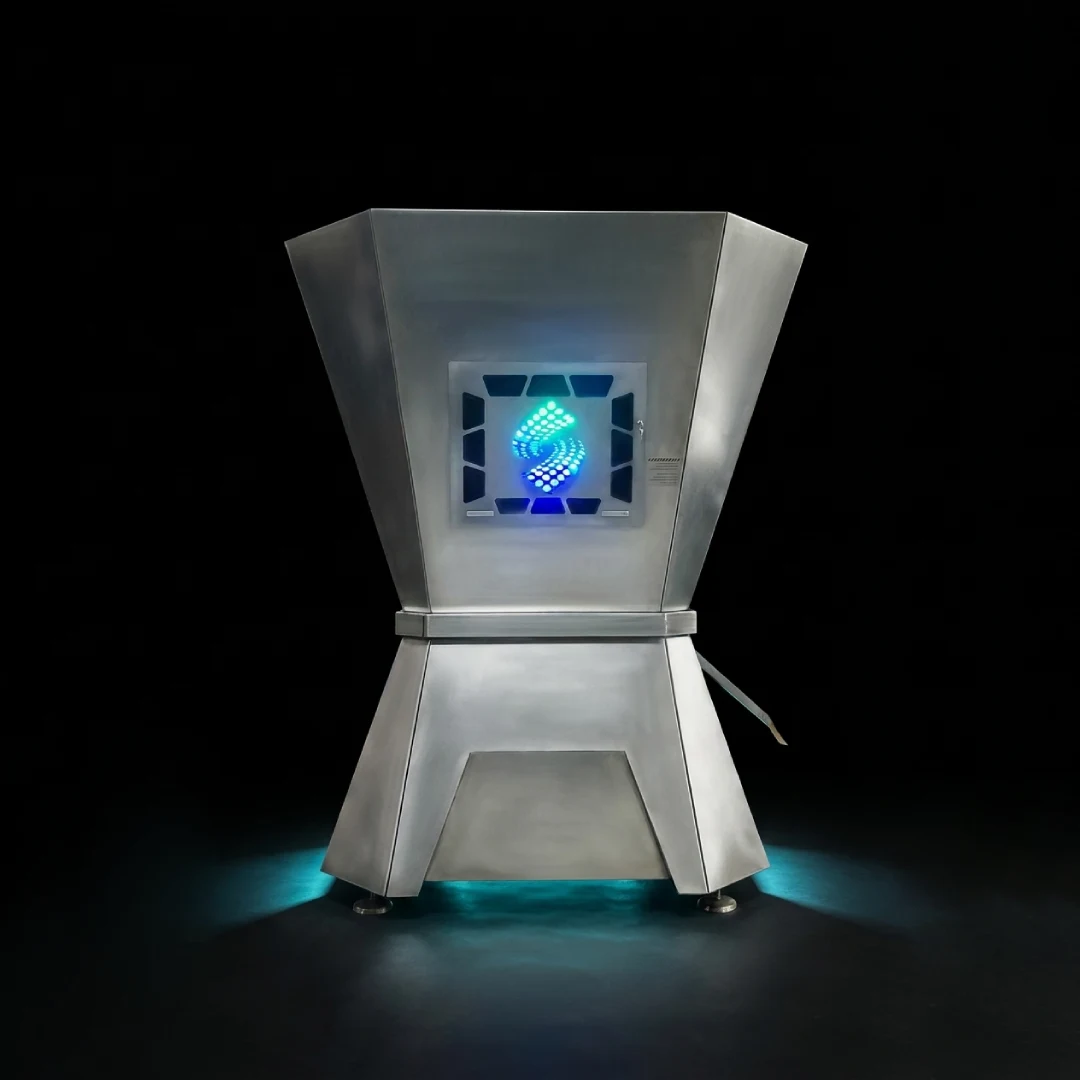

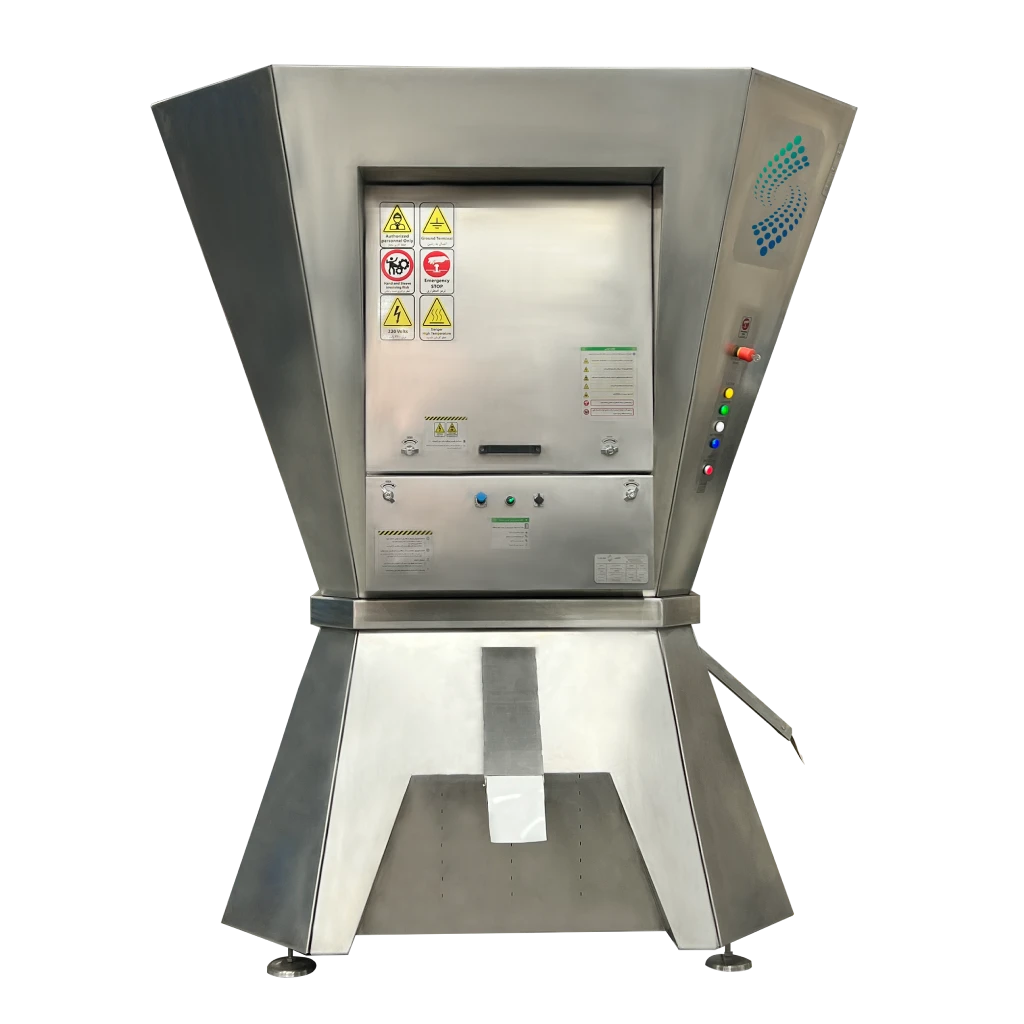

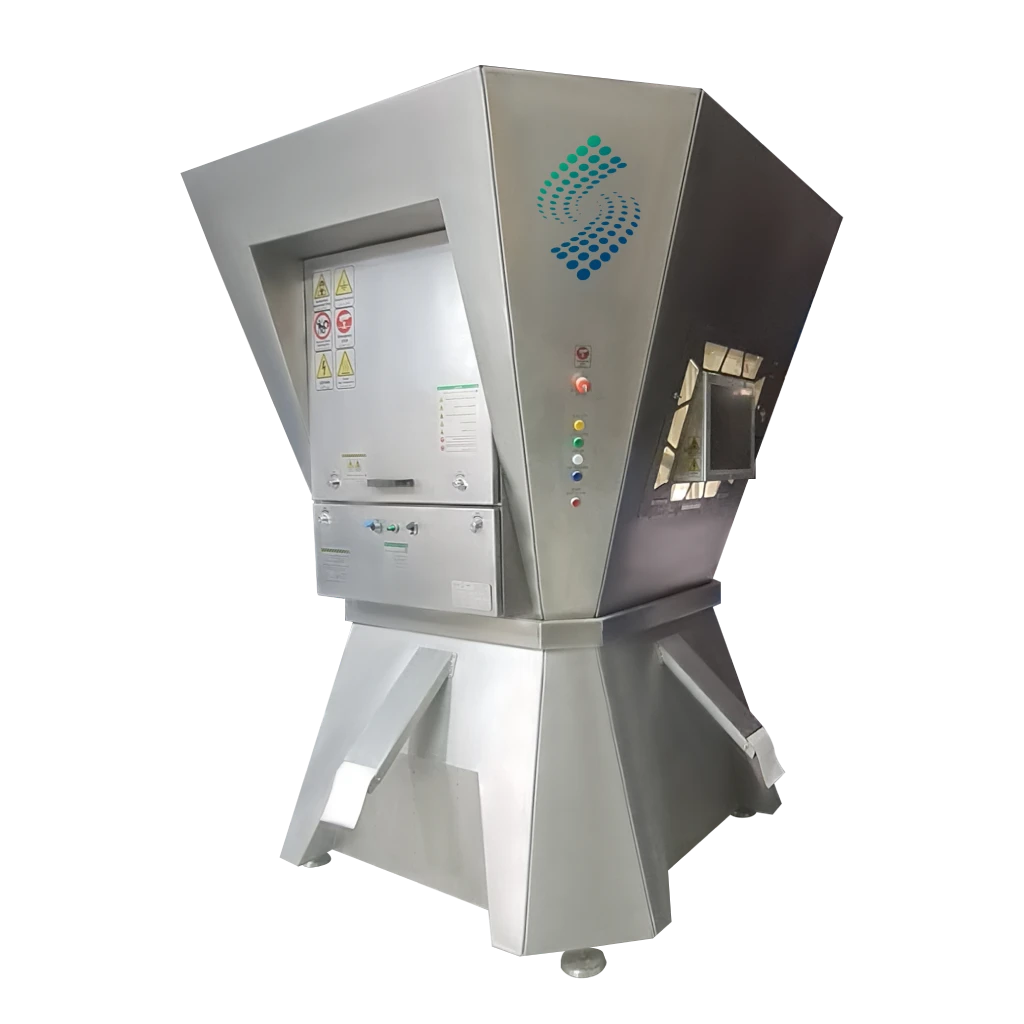

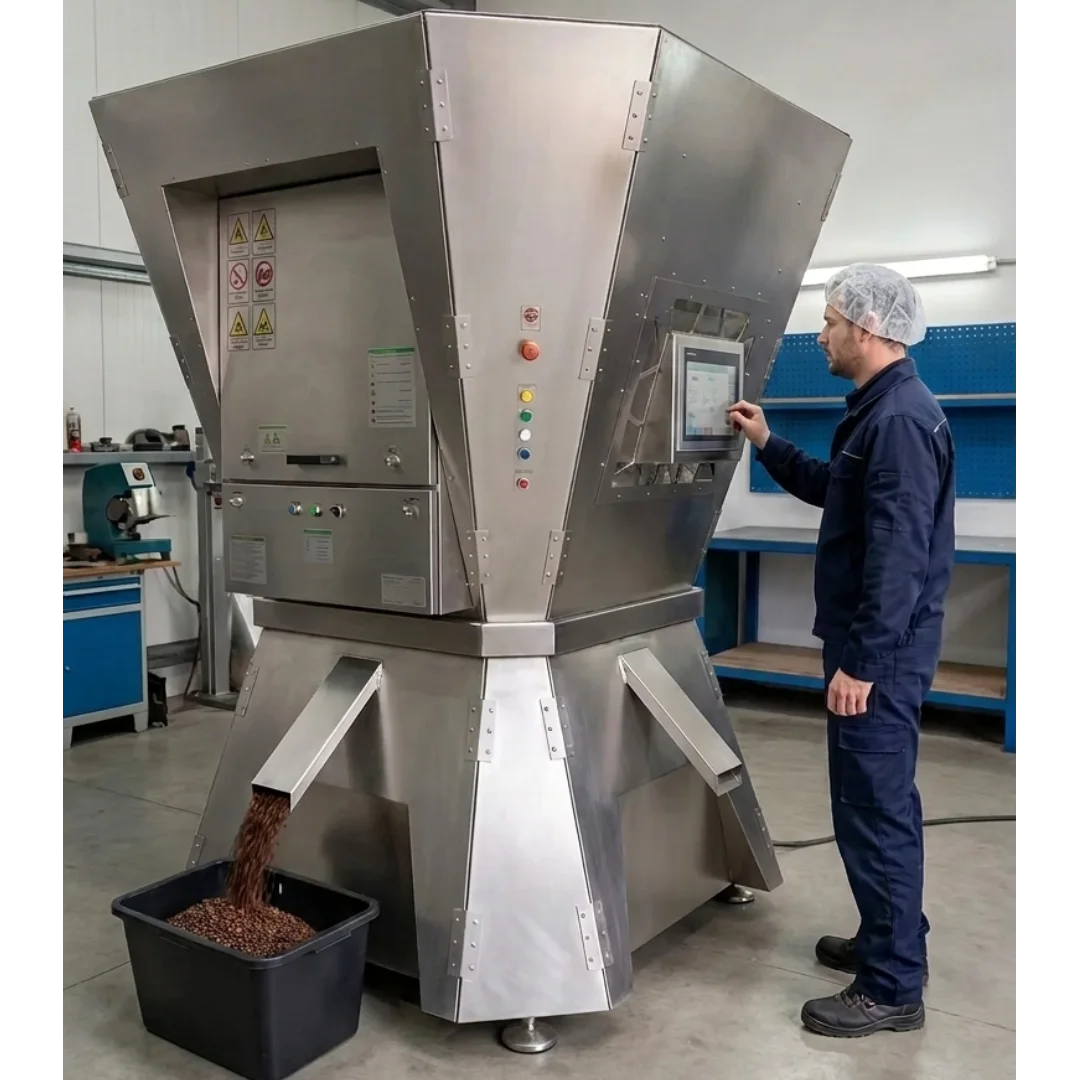

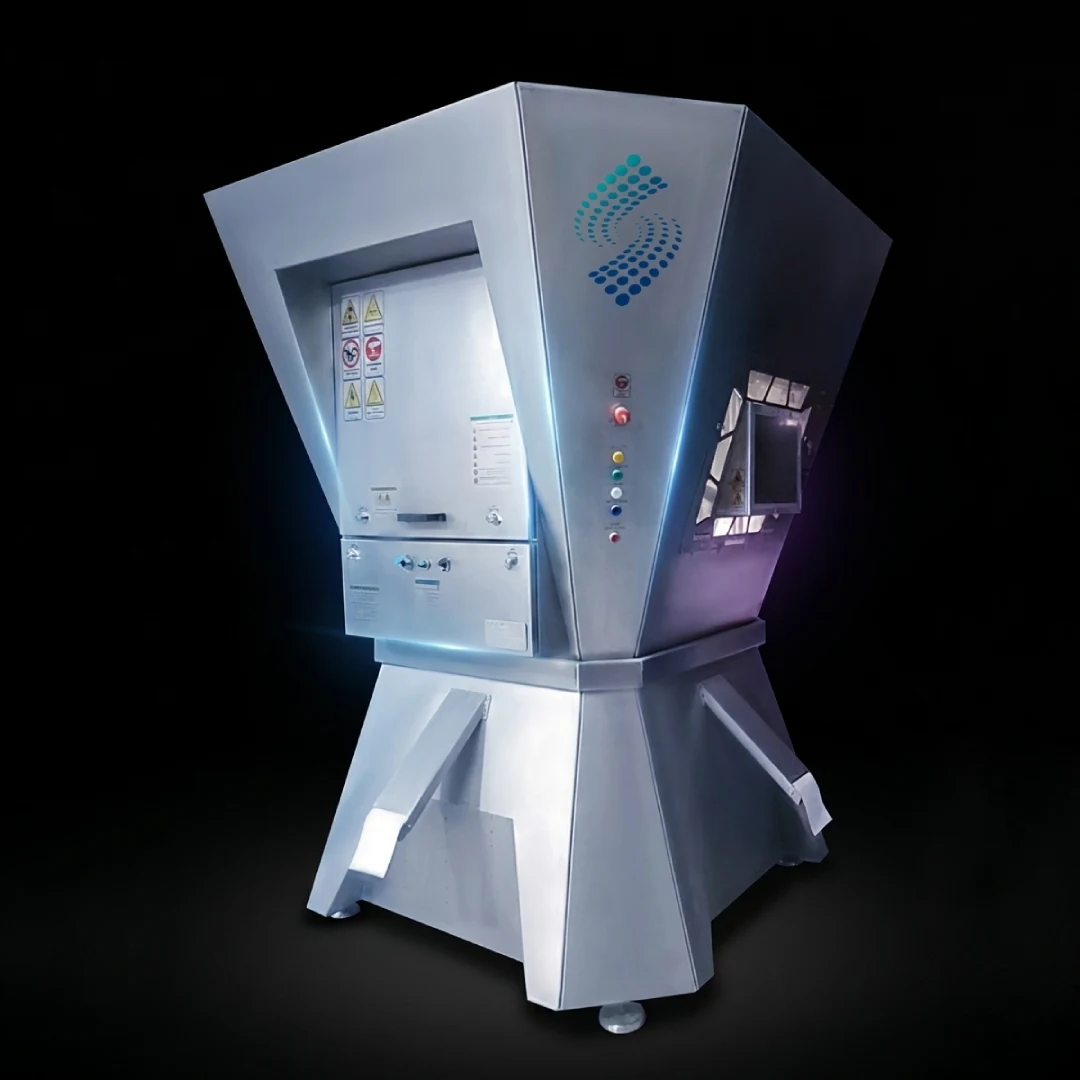

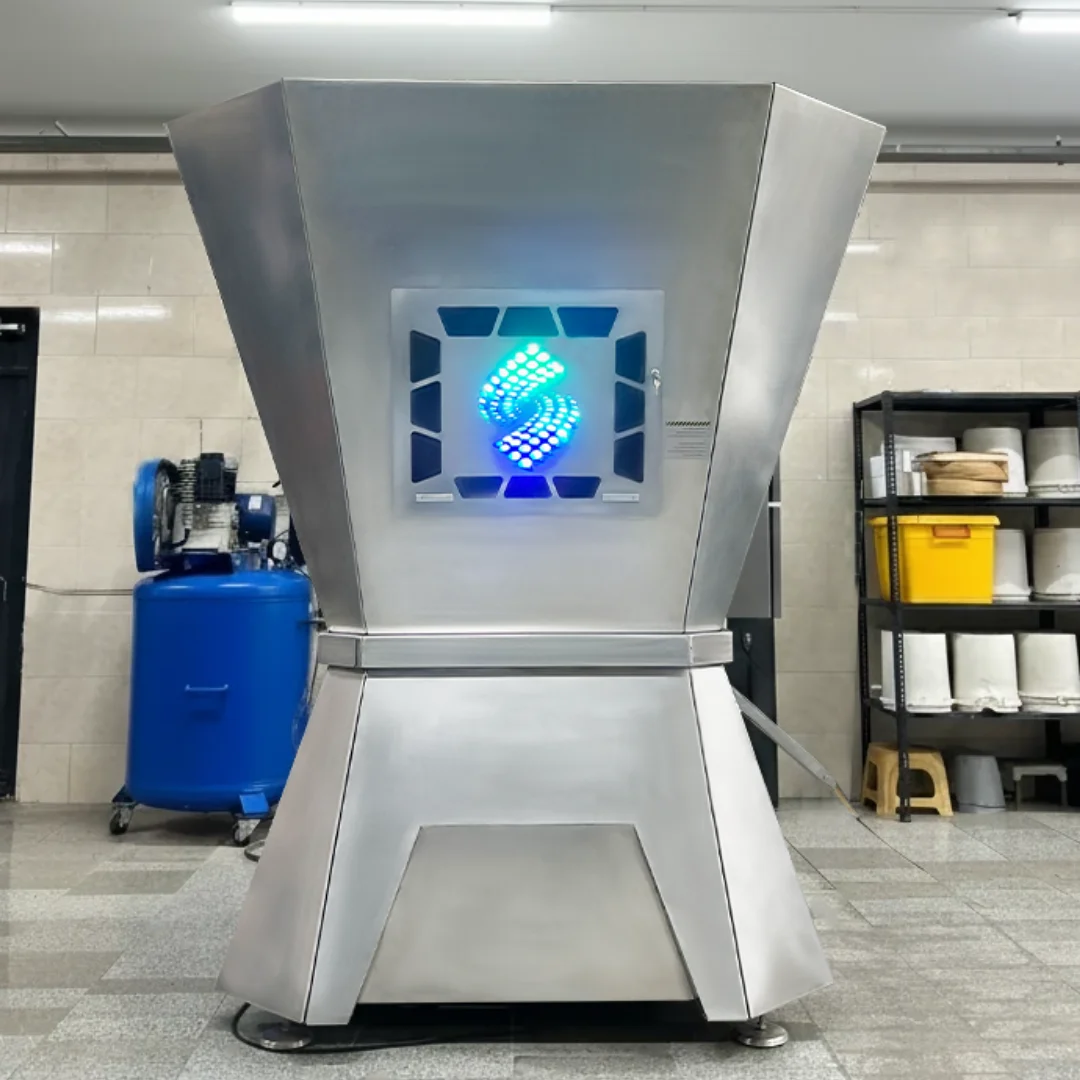

Product Overview
AI Processing Unit
Emergency Stop
Signal Lights
Rejected Items Tray
Accepted Items Tray
Electrical Box
Power On/Off Switcher
AI Processing Unit
Power On/Off Switch
Electrical Box
Accepted Items Tray
Emergency Stop
Signal Lights
Rejected Items Tray
User Interface Touch Monitor
Window/Access Panel
Coffee Sorting Parameters

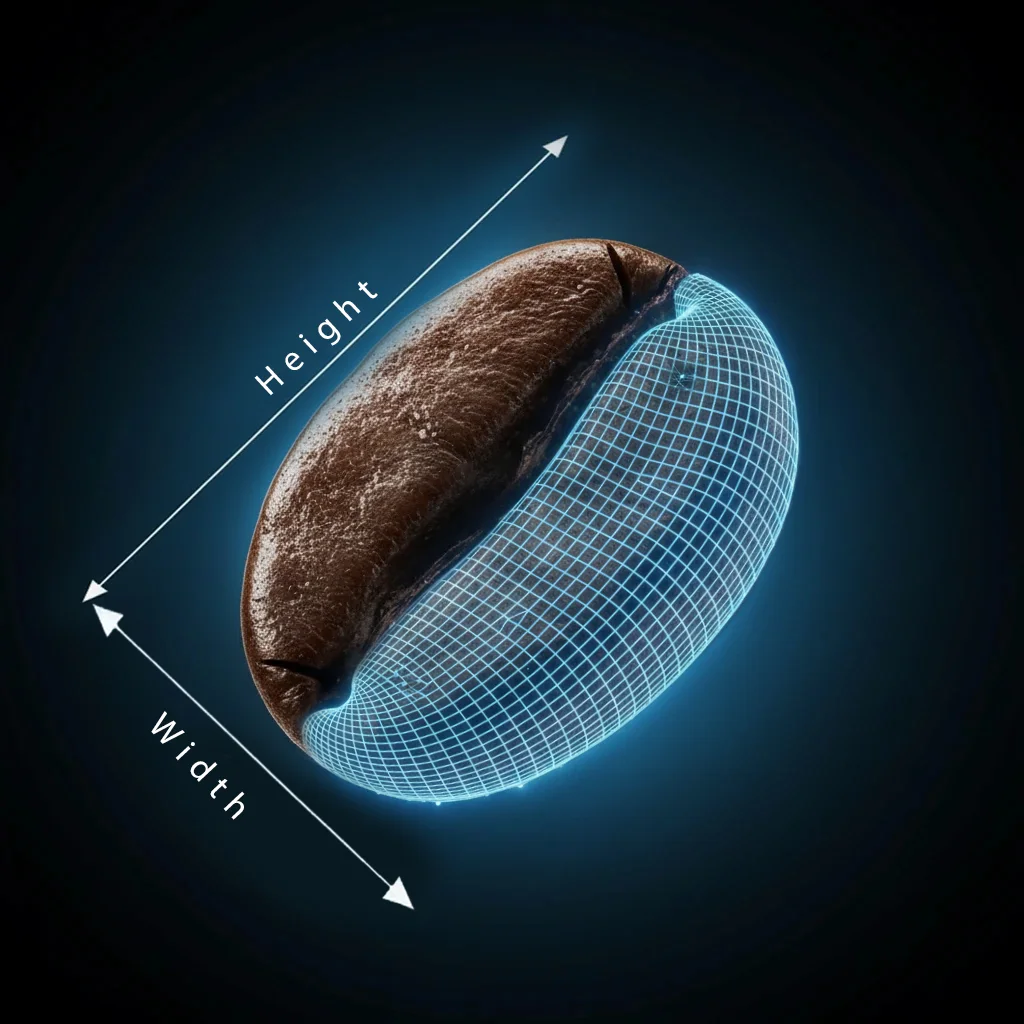

Coffee Size Detection
High-precision coffee size detection includes:
- Length measurement
- Width measurement
- Image area calculation
- Surface geometry analysis
Accurately measuring each bean ensures consistency and helps identify abnormalities instantly.

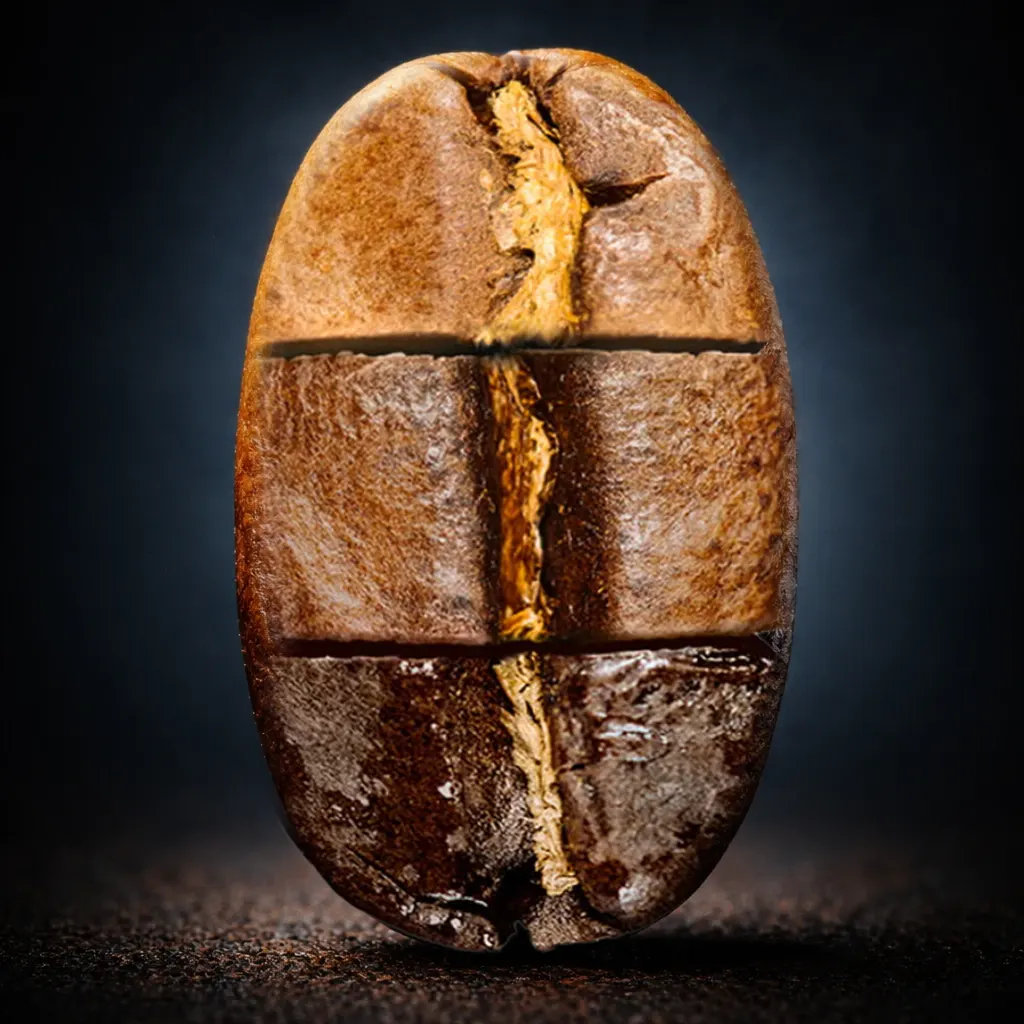

Color Recognition
Color diagnostics include:
- Identifying dark roasted coffee (Dark Color)
- Identifying Quaker coffee (Light Color)
- Detecting inconsistent roast patterns
Our system analyzes color tones pixel-by-pixel to detect roast levels with high accuracy.

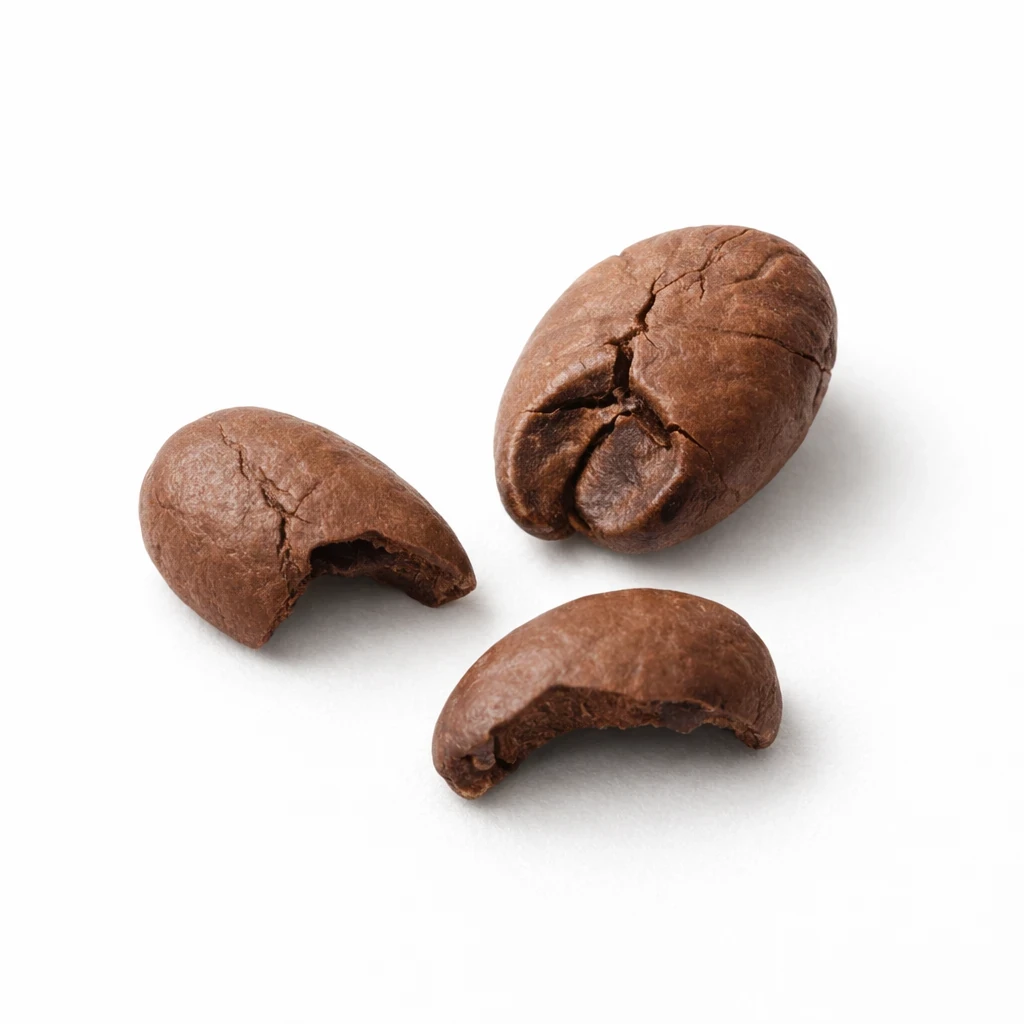

Shape Recognition
Coffee shape detection includes:
- Broken coffee
- Non-elliptical beans
- Surface deformities
Irregular or damaged beans are automatically flagged for sorting or removal.

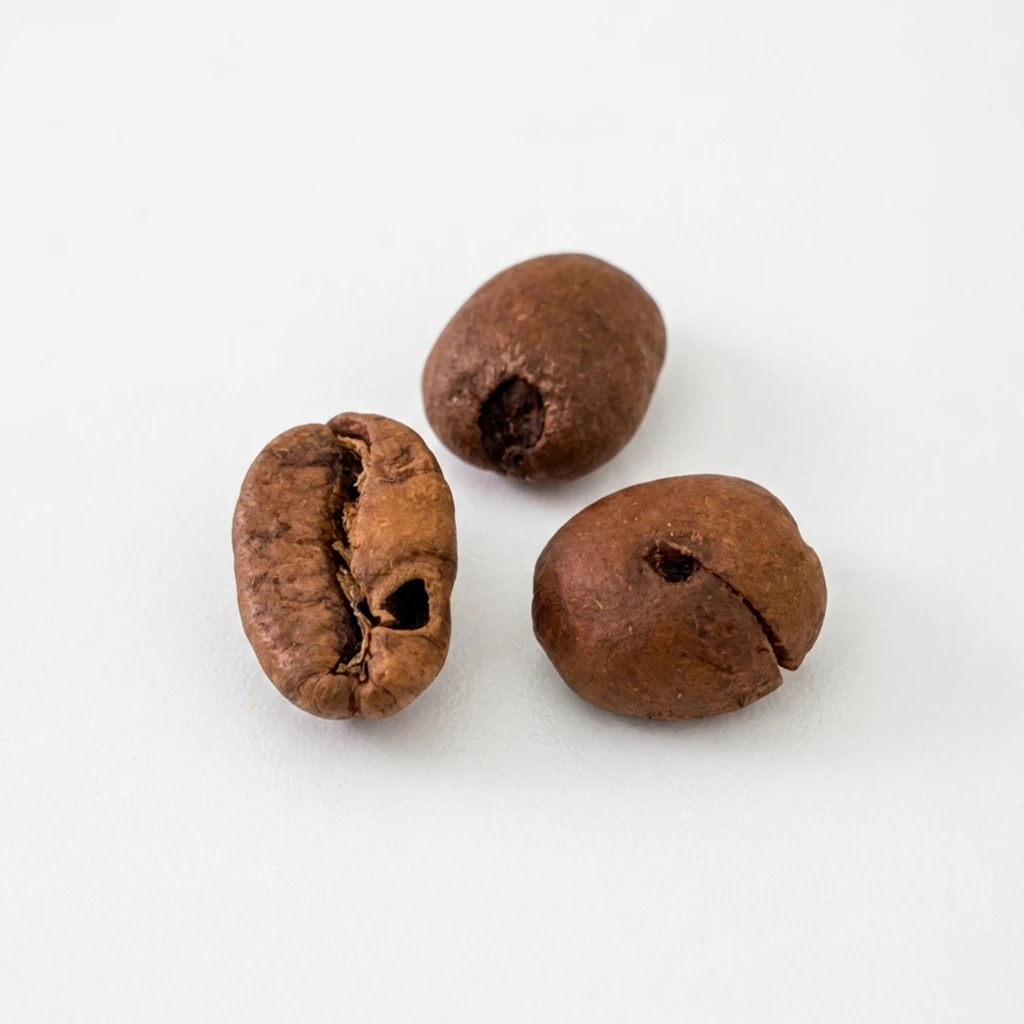

Insect-Damaged Beans
Insect-damaged beans are typically caused by the penetration of coffee berry borers, which tunnel through the bean’s parenchyma tissue and create channels within the internal structure and side walls. Holes located at the two poles of the bean are of less significance; however, damage in the central area indicates deeper tissue destruction, reduced density, and a decline in overall quality.

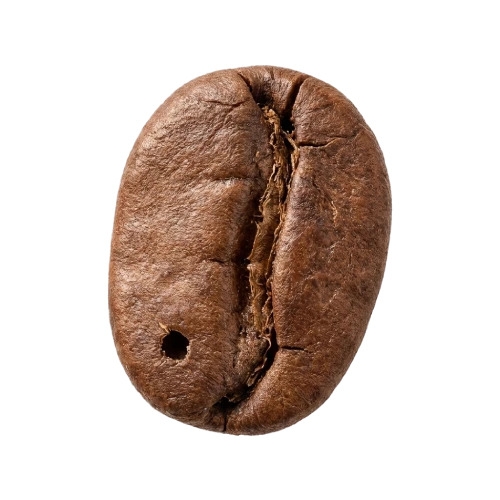

Hole not located on the ends

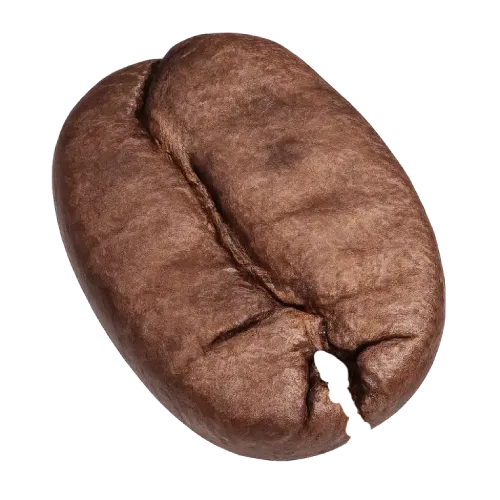

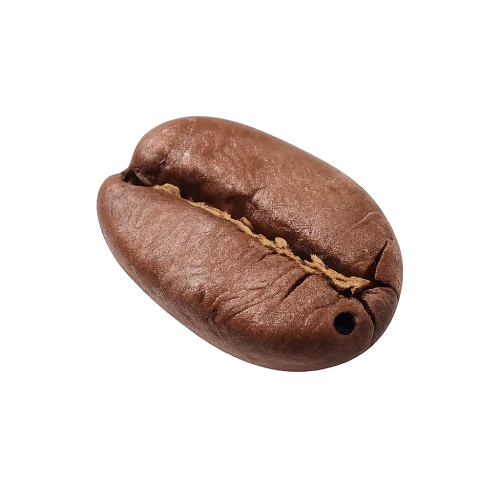

Large hole on both ends
Small hole on both ends

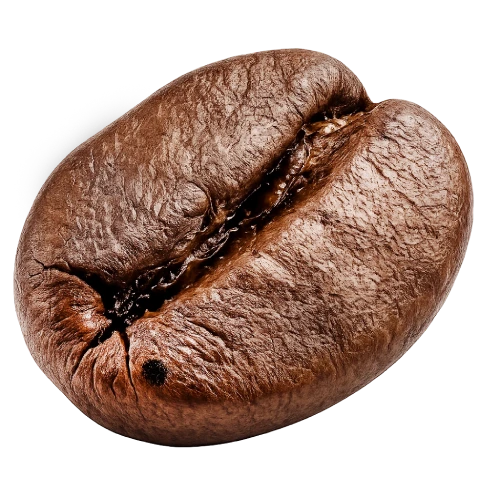

Black tip without a hole

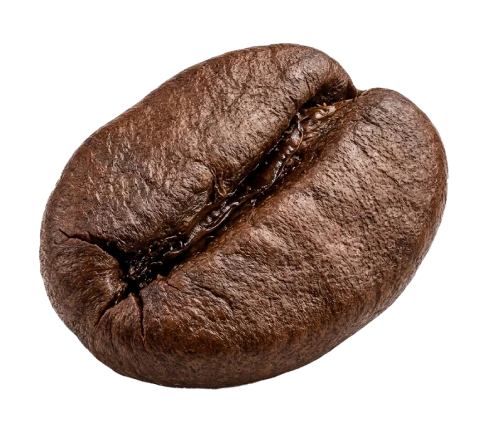

Healthy coffee bean

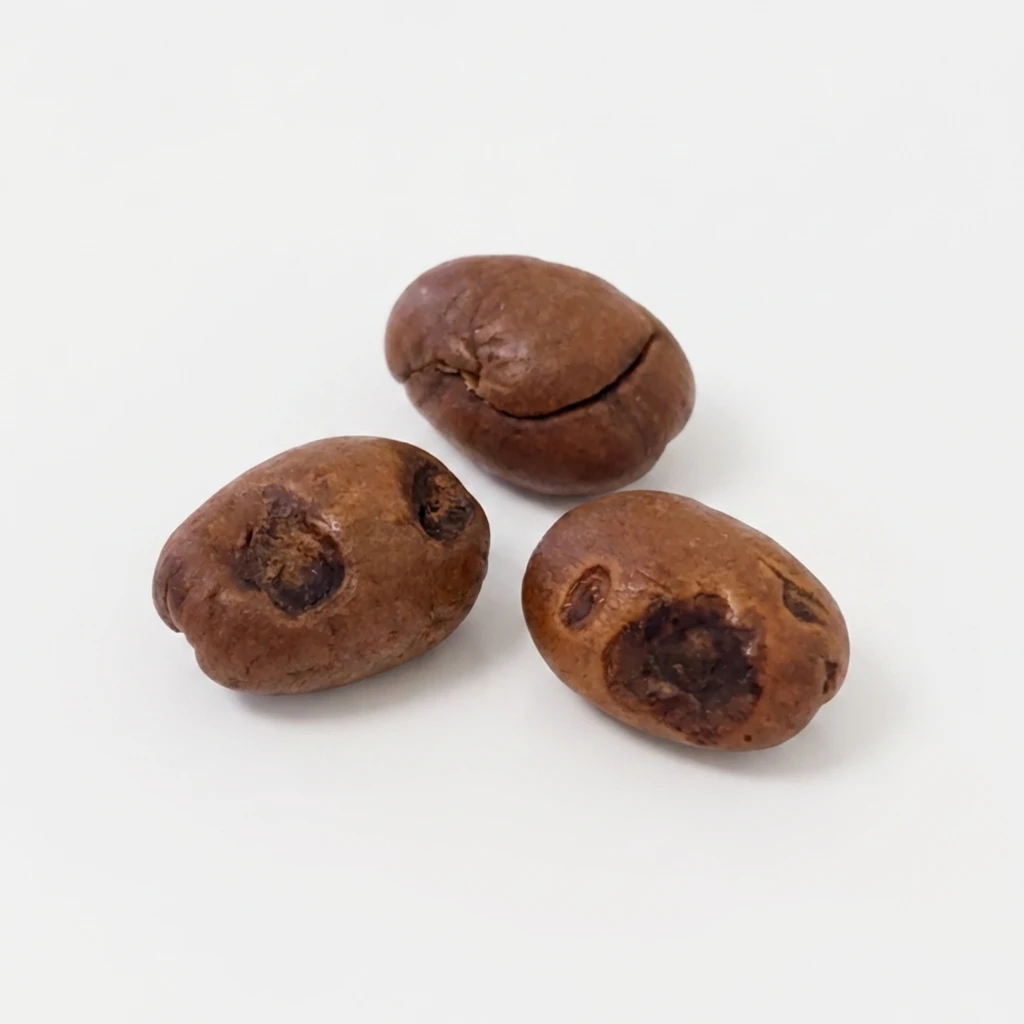

Cracked Beans
Cracks usually result from moisture fluctuations, rapid drying, or mechanical impact during processing stages. Cracking weakens the bean’s structure, creates an uneven and fissured surface, and during roasting leads to uneven heat development and an increased risk of flavor defects. It may also create favorable conditions for fungal growth.

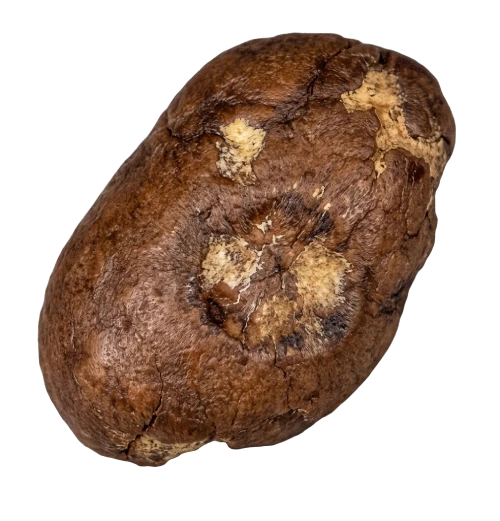

Cracked and Rotten coffee bean

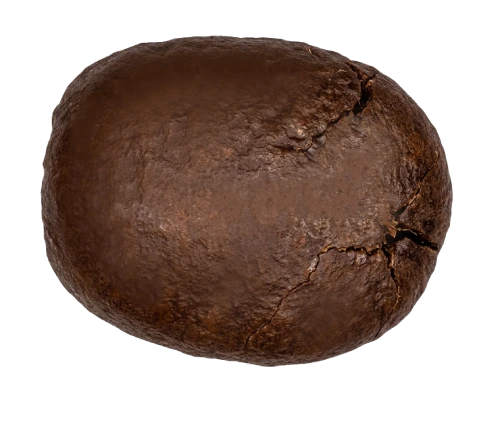

Scratched coffee bean

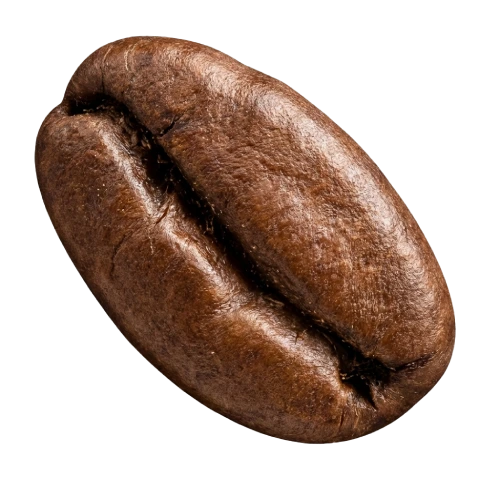

Healthy coffee bean

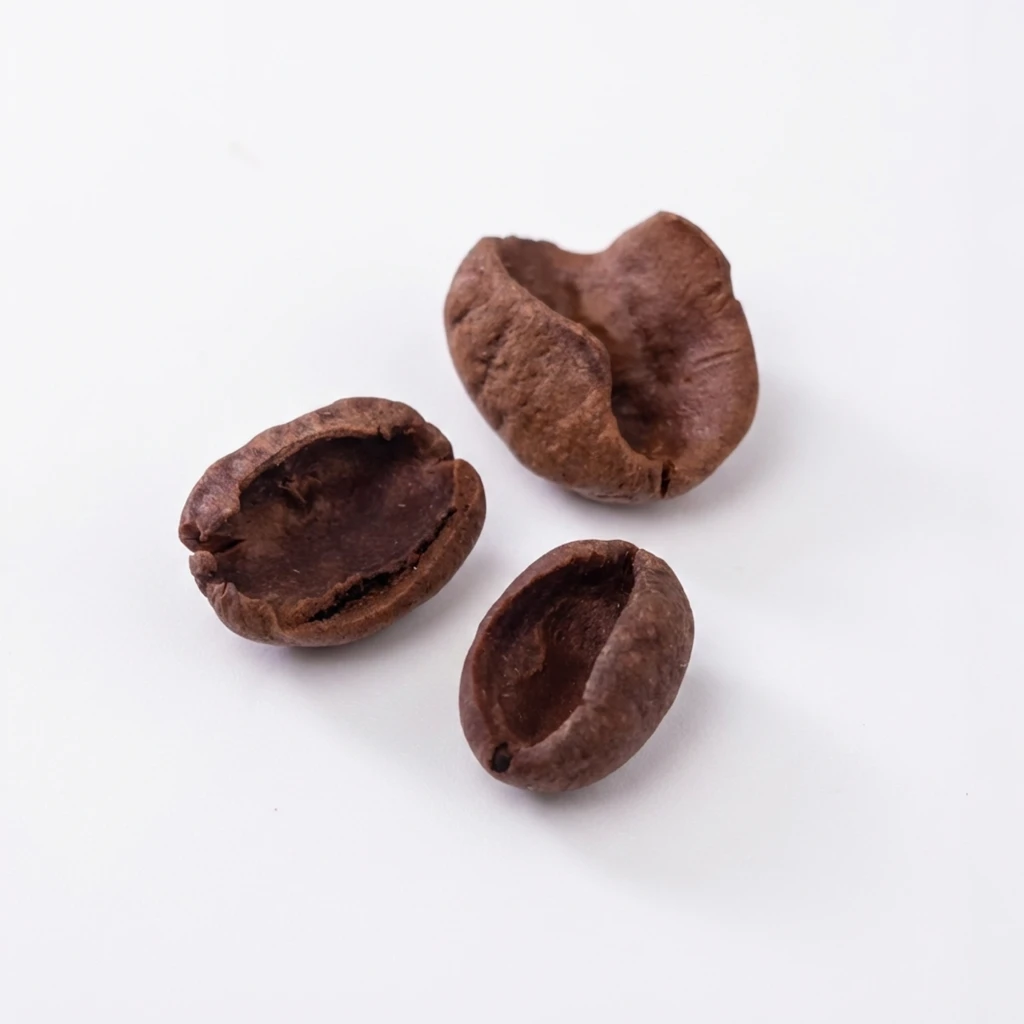

Shell Beans
Shell beans form when the bean develops incompletely or when uneven embryonic development results in only a thin outer shell of the hard endocarp being formed. These shells are often hollow inside, extremely lightweight, and produce a hollow sound. During roasting, they burn quickly and generate undesirable flavors.

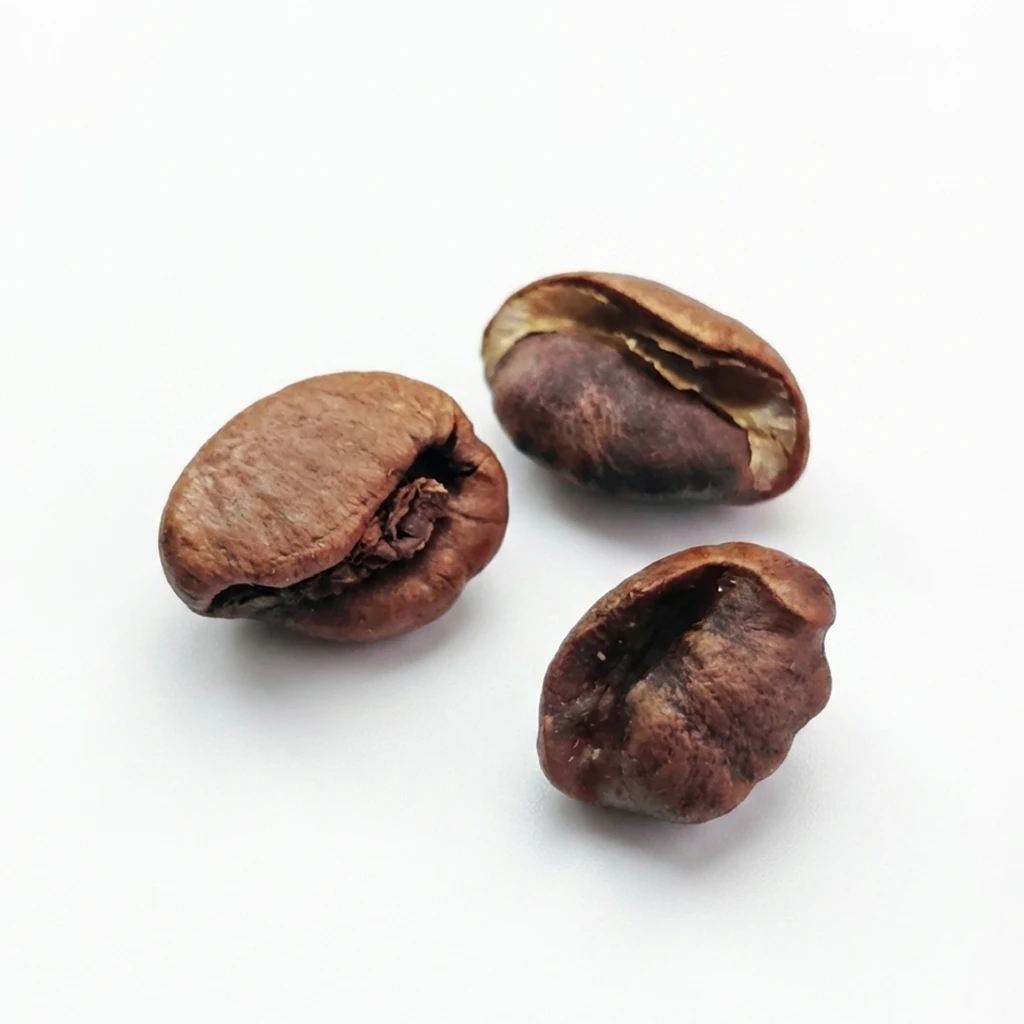

Deformed Beans
Deformed beans are usually the result of unripe cherries, poor plant nutrition, or mechanical compression during growth. They exhibit asymmetrical shapes, irregular edges, or compression on one side. This visual irregularity indicates incomplete development and often leads to uneven roasting and reduced uniformity in the cup.
Sometimes a single coffee bean may exhibit multiple defects simultaneously; for example, a bean may be both cracked and insect-damaged, as these abnormalities can overlap during different stages of growth or processing.
In addition to defective beans, coffee lots may also contain foreign materials such as small stones, wood fragments, large husk pieces, or other irregular particles, all of which can be independently detected and removed by the machine.
Coffee Sorter Specifications
| Machine Model | Kappa Coffee Sorter |
| Machine Dimensions (L × W × H) | 2.0 . 2.0 . 2.6 Meters |
| Minimum Clearance from Ceiling | 2 Meters |
| Machine Weight | Less than 1 Metric Ton |
| Power Supply | 220 AC, Single-Phase |
| Operating Ambient Temperature | 10°C to 40°C |
| Minimum Clearance on All Sides | 2 Meters |
| Detection Accuracy | Greater than %98 |
| Ejector Pressure | 2 Bar |
| Display Screen | 17-Inch Industrial-Grade Touchscreen |
| Network Connectivity Requirement | Required |
| Grounding (Earthing) Requirement | Required |
| Body Material | Stainless steel |
UI of Coffee Sorting Machine
The user interface (UI) of a sorting machine provides operators with a way to monitor, control, and adjust the machine’s sorting process. After the device boots up, the Login page appears, where the user must enter their username and password. An admin and several simple users can be defined for this device. The admin has more access than simple users.
What does a coffee sorter do?
- Identify bean quality
- Separate defective or unhealthy beans
- Sort beans by type or origin
- Increase processing speed and accuracy
- Track and record processing data
- Automatic control via integrated software
